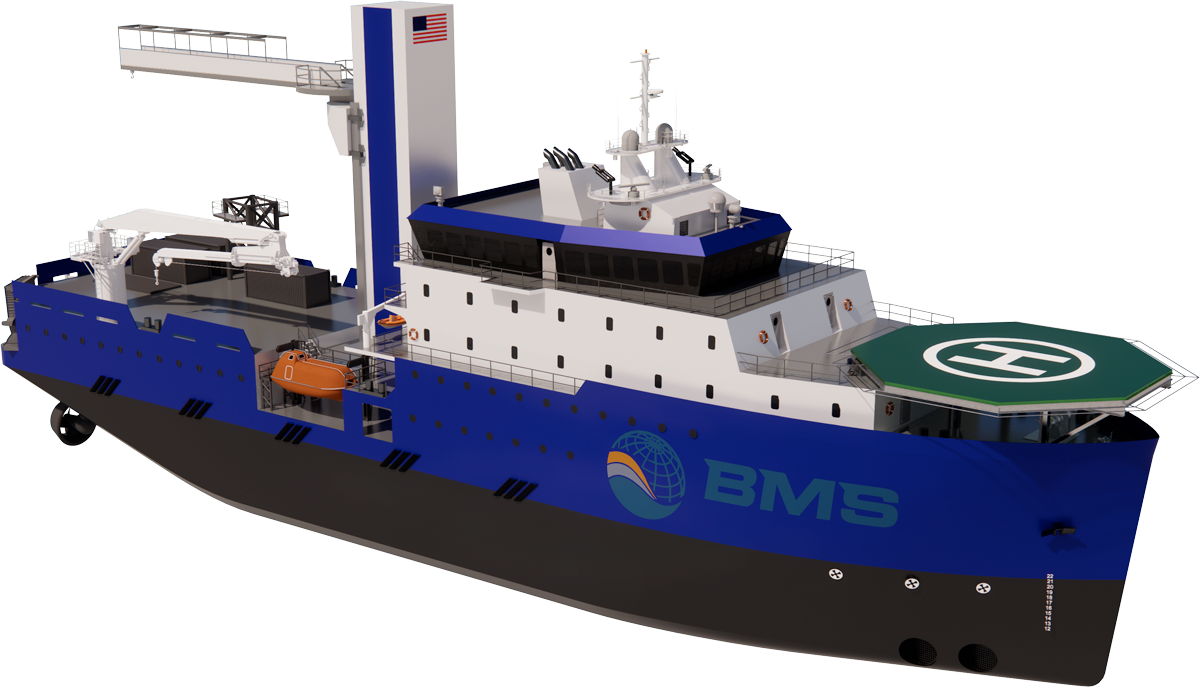

Wind Turbine Support Vessel
BMS 1776
U.S. designed for the American wind market.
Fully developable hull surfaces reduces costly fabrication
processes, such as hot and cold rolling.
Digital optimization from MARIN increases hull efficiency by
23%, resulting in 13.5kt top speed.
BlueDrive PlusC system, when spec’d, offers next level
diesel-electric control technology resulting in safer,
more efficient, and environmentally friendly operations.
Construction utilizing recycled steel reduces emissions by
2,625,000 Kg C02 relative to ore-based.
Emissions can be monitored in real time at sea or remotely.
Available hybrid battery system stores excess energy to
increases operating efficiency.
Download as PDF
Design specifications
|
Length overall |
275 ft |
|
Breadth |
57 ft |
|
Draft |
19 ft |
|
Depth |
28 ft |
|
Accommodation |
60 persons |
Technical specifications
|
Type Classification |
Service Operations Vessel ABS A1 (Wind IMR), AMS, ACCU HAB (WB), E, GREEN PASSPORT ENVIRO, UWILD, DPS-2 |
|
|
Dimensions
|
Length overall |
275 ft |
|
Breadth |
57 ft |
|
|
Draft |
19 ft |
|
|
Depth |
26 ft |
|
|
Capacities
|
Potable Water |
236,000 gal |
|
Ballast Water |
530,000 gal |
|
|
Fuel Oil |
290,000 gal |
|
|
Wastewater |
9,000 gal |
|
|
Main Diesel Generators |
4 x |
1,900kW each |
|
Propulsion |
2 x L-Drives |
2000kW |
|
Bow Thrusters |
2 x Tunnel Thruster |
900kW |
|
Retractable Thrusters |
1 x |
700kW |
|
Life Saving Equipment |
Lifeboats |
2 x 37 Person |
|
Rescue Boat |
2 x Fast C or B |
|
|
Deadweight |
3,000LT |
|
|
Speed |
13.5 knots |
|
|
Gangway |
W-Type Ampelmann motion compensating |
|
|
Deck Crane |
SWL |
5T/15T |
|
Cargo Loading Platform |
Hydraulic deck hatch and RoRo ramp for fast loading of standardized cargo |
|
|
Warehouse |
4,795 ft2 climate controlled |
|
|
Open Deck |
5,000 ft2 |
|
|
Helideck |
50 ft |
|
|
Accommodation |
60 POB |
|
|
Cabins |
56 x Singles, 4 x Suites |
|
|
Facilities |
Hospital, Cinema, Lounge, Gymnasium, 2 x Laundry Rooms, |
|
|
Endurance |
30 days without port call |
|
